Middle East Grid-Side 18MW/90MWh BESS Project

Engineered for Extreme Climates: A 90MWh BESS Solution for Grid Stability

Project Overview

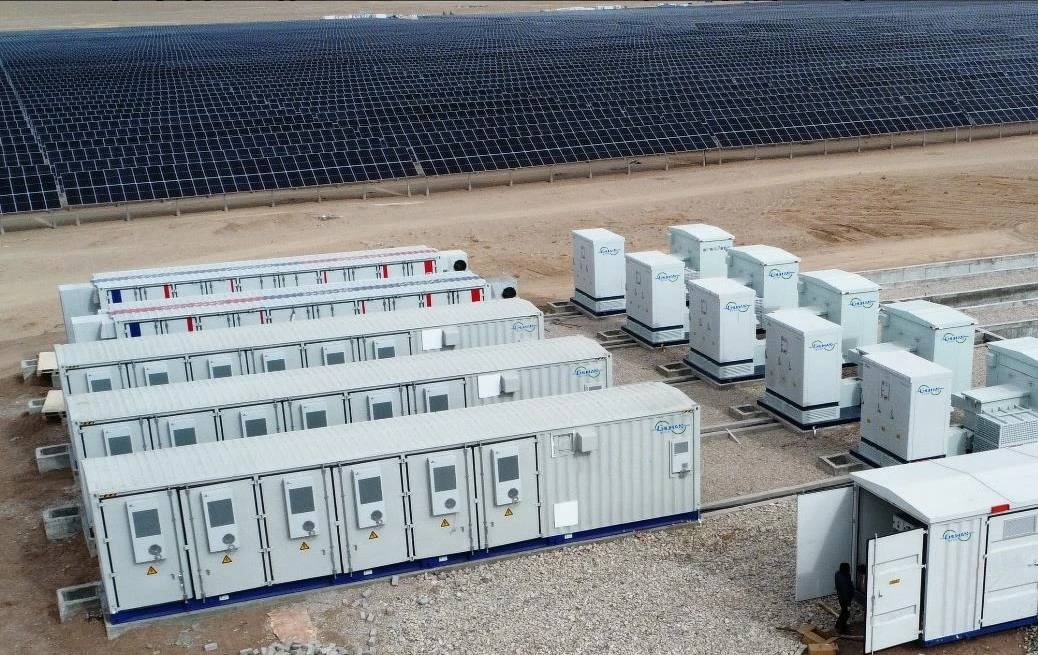

This is a large-scale, grid-side battery energy storage system (BESS) project deployed in the Middle East, with a capacity of 18MW/90MWh. As critical power infrastructure, it is designed to provide flexible grid regulation services, supporting higher penetration of renewable energy (particularly solar PV), and enhancing grid stability, reliability, and operational efficiency.

Our Core Value: We deliver not just storage equipment, but a fully engineered, turnkey grid integration solution proven to perform in the Middle East's most demanding environments.

Core Specifications & Technical Selection

Precise data and intentional product selection demonstrate technical depth and purpose-built design.

Project Metric	Specification	Rationale & Advantage
Power / Capacity	18MW / 90MWh	Hour duration storage, ideal for peak shaving, renewable capacity firming, and other extended-duration applications.
Application	Grid-Side (Generation Side)	Direct interconnection at substation or power plant level to provide services to the grid operator.
System Architecture	Containerized BESS	Advantages: Factory-integrated and pre-tested for faster on-site deployment; facilitates transportation and future expansion; offers high ingress protection.

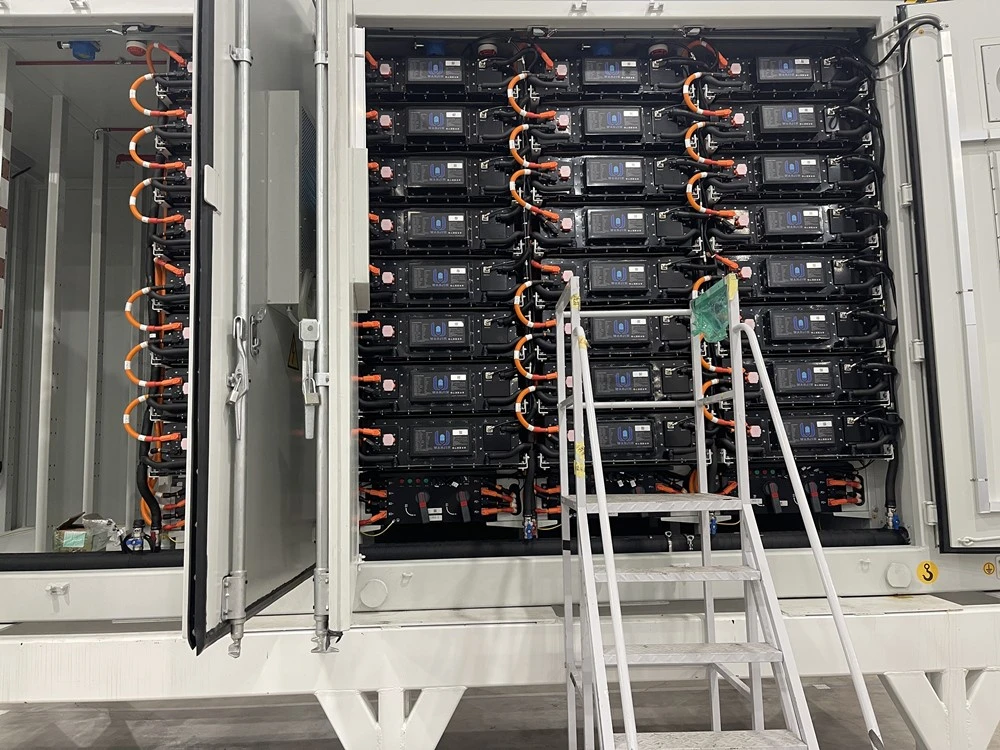

Battery Pack Tech	Air-Cooled Pack, 14P400S	Purpose-Built Design: The 14P400S configuration optimizes energy density and system manageability. Air-cooling is a robust, maintainable, and cost-effective choice for the dry, hot climate, ensuring high reliability.
Primary Services	Peak Shaving, Frequency Regulation, Renewable Smoothing & Firming, Spinning Reserve	Increases grid asset utilization, ensures power supply security, and enables greater clean energy integration.

Engineering for Harsh Environments

This section explains the "why" behind our choices, showcasing deep expertise.
Extreme Climate Adaptation: Our containerized systems integrate advanced thermal management and dust-proof designs. Specifically engineered for Middle Eastern extremes (>50°C heat, sand), we optimize cooling cycles, air filtration, and sealing to maintain optimal cell temperature, ensuring system longevity and safety.
High Reliability & Availability: Designs comply with stringent international safety standards (e.g., UL, IEC). Our intelligent, multi-layer Battery Management System (BMS) provides pack, rack, and system-level monitoring and protection for 24/7 stable operation under harsh conditions.
Full Lifecycle Support: We provide end-to-end services from project planning, system design, and equipment supply to commissioning, remote monitoring, on-site maintenance, and performance guarantees. Our local support network ensures rapid response.

Project Value & Impact

Grid Value: Delivers fast, accurate power regulation, reduces reliance on fossil-fuel peaker plants, and lowers overall grid operating costs.

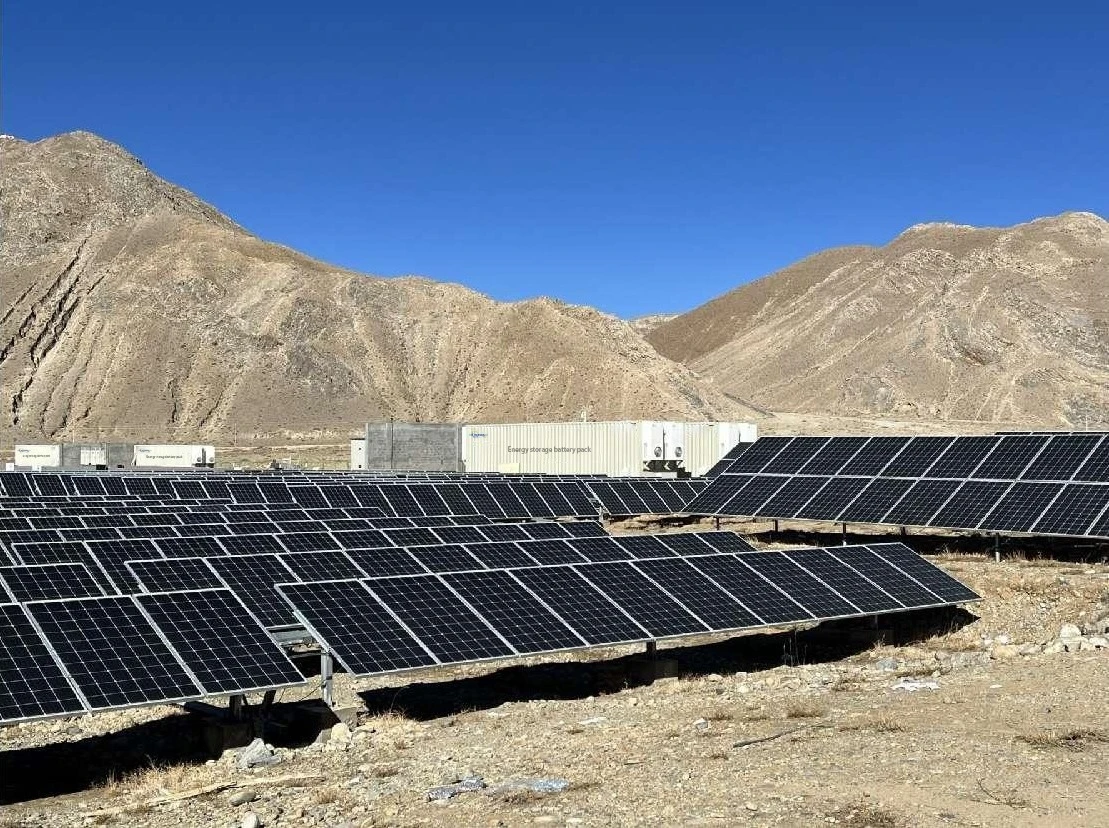

Energy Transition Value: Partners with large-scale solar PV plants to smooth intermittent output and transform solar energy into a stable, dispatchable power resource, accelerating decarbonization goals.
| Project Metric | Data |
| Daily Peak-Shaving Capacity | Can deliver 18MW of continuous discharge power for 5 hours. |
| Estimated Annual Emission Reduction | Enables integration of over 30,000 MWh of clean energy annually, displacing ~20,000 tons of CO2. |
| _Estimate based on displacing natural gas generation._ |

Call to Action

Planning a large-scale BESS project to enhance grid resilience or support your GW-scale solar plant?

Our 18MW/90MWh Middle East project demonstrates our proven capability in large-scale BESS integration and delivery. We specialize in tailoring solutions for the world's most challenging environments.
