Products Introduction

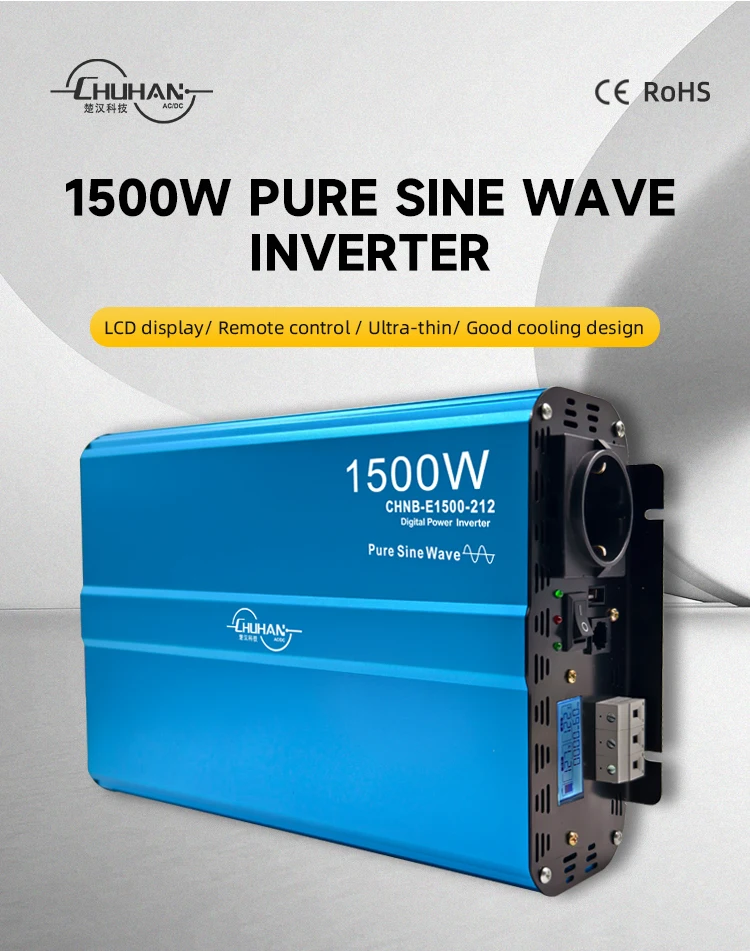

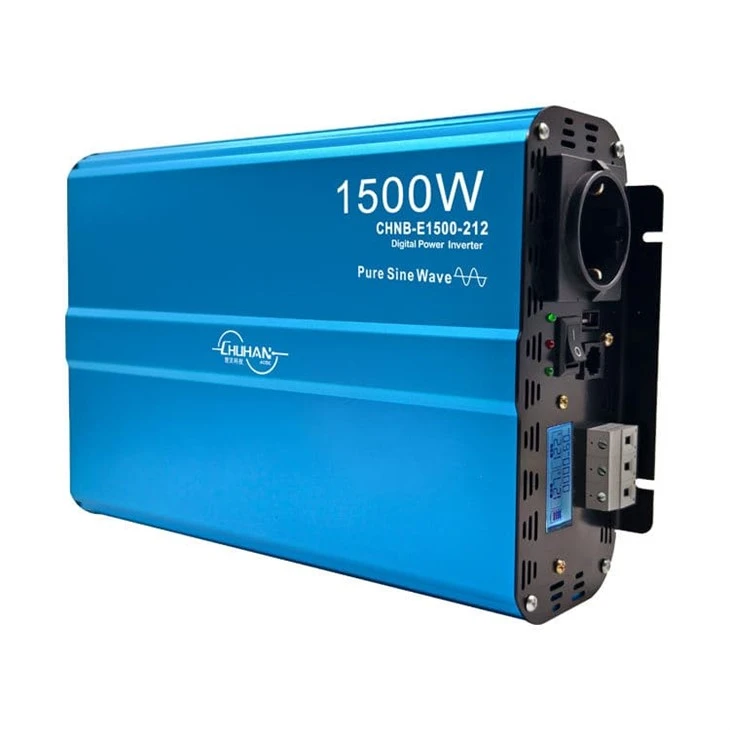

The CHNB-E1500 is a high-performance pure sine wave inverter from Chuhan Technology's E-Series, specifically designed for equipment sensitive to power quality and medium-to-high power loads. It outputs pristine AC power with a Total Harmonic Distortion (THD < 3%) and a smooth, delicate waveform that is entirely comparable to utility grid power. With 1500W continuous power and a robust 3000W peak capacity, it not only ensures the stable operation of precision devices like computers and medical instruments but also effortlessly handles the startup surges of inductive loads like refrigerators and water pumps. Equipped with an intuitive LCD screen and boasting a conversion efficiency of up to 93%, it is a premium power solution for RV upgrades and professional operations.
Application Scenarios
- Home/RV Inductive Loads: Variable/fixed-frequency air conditioners (small capacity), refrigerators, washing machines, water pumps, and range hoods (pure sine wave ensures motor longevity).
- Precision Office/Medical Equipment: Desktop computers, laser printers, respirators, oxygen concentrators, and oscilloscopes.
- Power Tools: Angle grinders, electric drills, etc.
Products features
Competitive advantage
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
Pure Sine Wave Output (THD < 3%)
Utilizing high-frequency SPWM modulation technology, it delivers a pristine output waveform. Compared to modified sine wave inverters, it significantly reduces equipment noise and heat, making it the safe choice for driving motor loads (fans, compressors) and precision electronics.
Up to 93% Conversion Efficiency
Superior circuit design achieves an 89%-93% high conversion efficiency, minimizing energy loss during the DC-to-AC conversion process to ensure every watt of power is fully utilized.

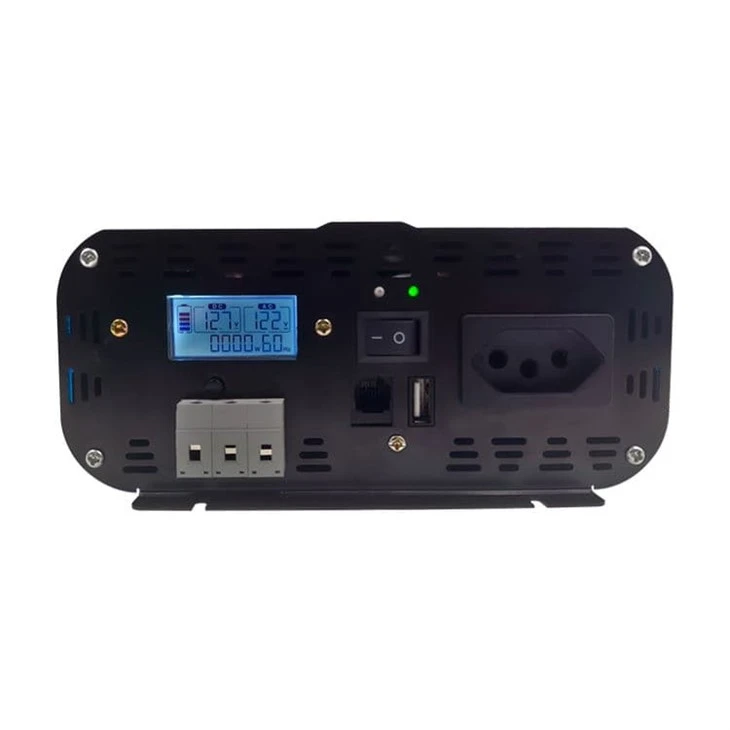

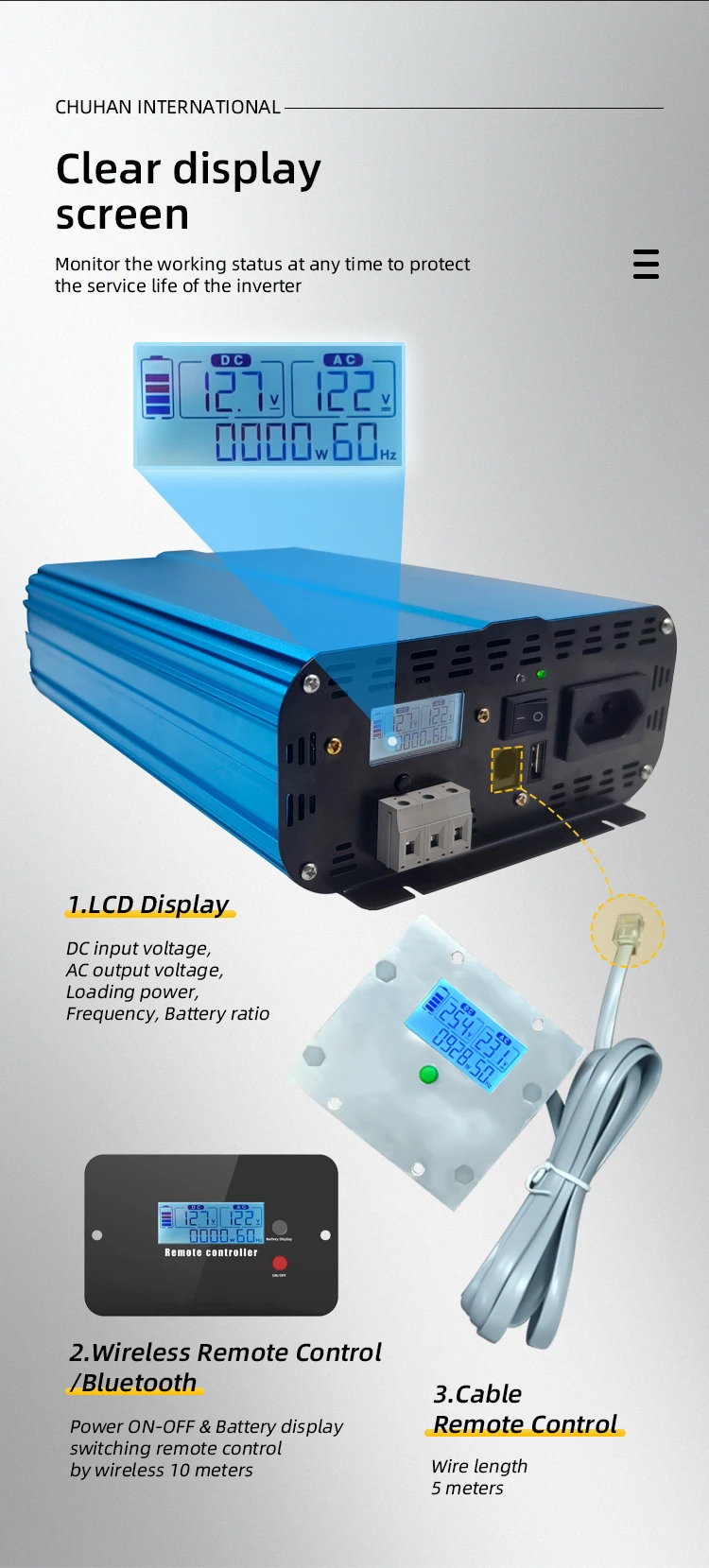

Smart LCD Visual Monitoring

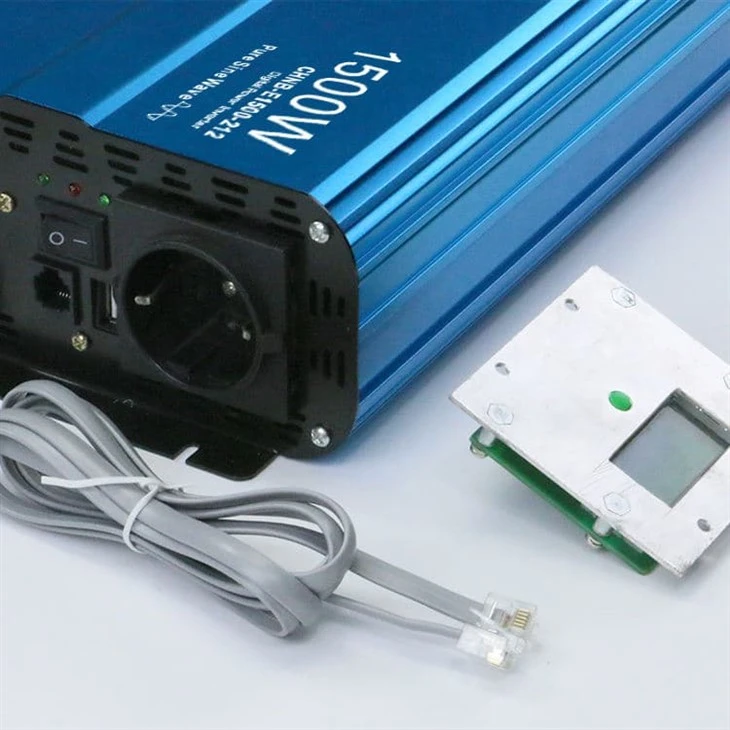

An integrated high-definition LCD screen displays core data in real time, including input voltage, output voltage, load power, and frequency. No external meters are needed-your power status is always at your fingertips.
True Zero Standby Power Design
Highly efficient in operation and exceptionally power-conscious in storage. In shutdown mode, current consumption is ≤1mA, practically drawing zero power from the battery. This is perfect for long-term RV parking or backup power scenarios, completely eliminating battery drain anxiety. (Note: No-load power consumption in ON mode is approx. 15W).
Industrial-Grade Protection & Wide-Temperature Operation

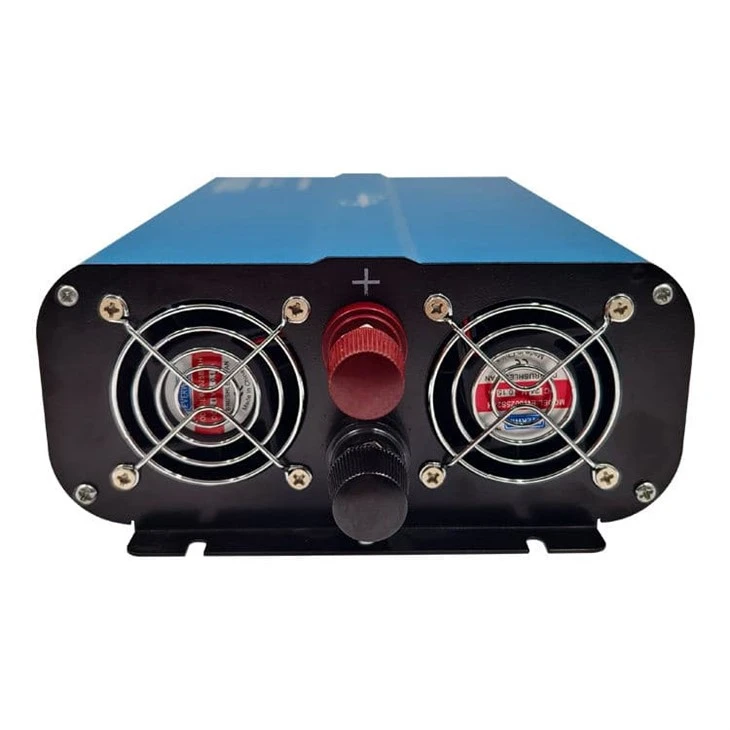

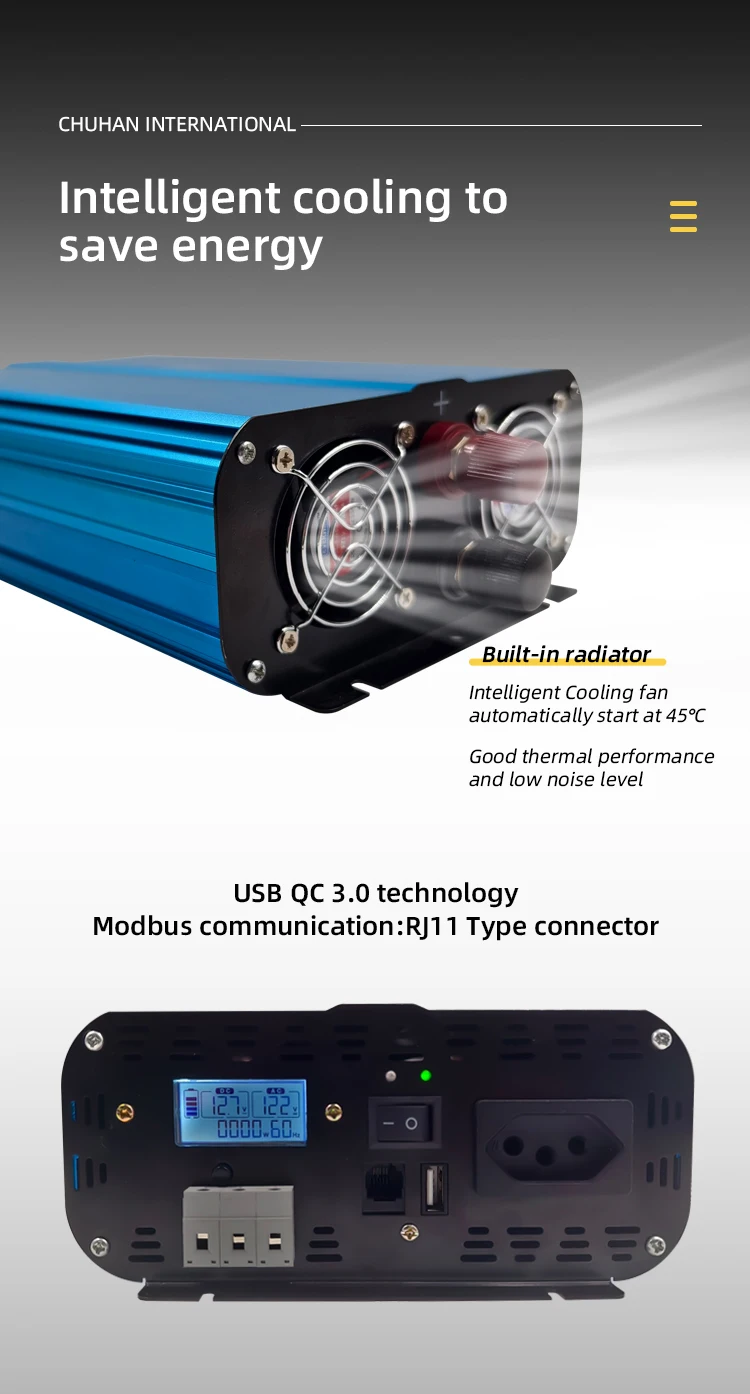

Features input reverse polarity, over/undervoltage, overload, short-circuit, and overtemperature protection. The temperature-controlled fan intelligently adjusts its speed. It supports an ultra-wide operating temperature range of -25°C to +70°C, fearless in both freezing cold and extreme heat.
